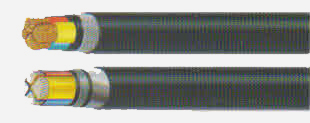

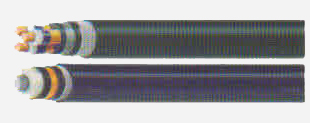

MV Power Cables
3.3 to 33KV grade Three Core Copper / Aluminium Conductor cables from sizes 35 sq.mm to 1200 sq.mm conforming to IS: 7098/II/85, IEC 60502-2 / BS 6622/ BS 7835.

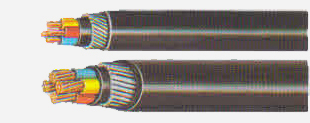

LV Power Cables
1100 volts grade Power Copper / Aluminium Cables from 2.5sq.mm to 1000sq .mm and in 2/3/3.5/4 core as per IS 1554 / IS 7098(Part1) 1988 and generally confirming to IEC 605021 / BS 5467 / BS 6724.

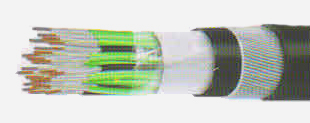

LV Control Cables
1110 Volts grade 2 to 100 core in 1.5 and 2.5 sq.mm as per IS 1554 / IS 7098 (Part 1) 1988 and generally confirming to IEC 60502-1/BS 5467 / BS 6724.
Fire Survival Cables (FS)
Stranded Copper Conductor covered with layers of Mica Glass tape, Fire Survival Cables generally confirming to IEC 60331, BS 7846 & BS 6387 category CWZ.

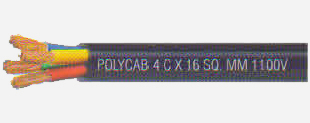

Multicore Industrial Flexible Cables
2 Core to 61 Core x .050 sq.mm to 4 sq.mm, 2 Core to 4 Core from 6 sq.mm to 120 sq.mm.

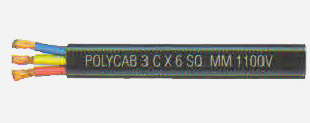

Submersible Flat and Round Cables
Flat : 3 Core x 1.50 sq.mm to 95 sq.mm, Round : 3 Core and 4 Core x 1.5 sq.mm to 120 sq.mm.

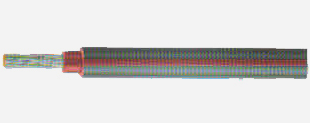

Solar DC Cable
Class 5 Bare / Tinned Copper Conductor insulated with XLPE / Cross linkable Low Smoke Zero Halogen compound suitable for conductor temperature beyond 120 C and sheathed with UV stabilized Cross linkable Low Smoke Zero Halogen compound – in sizes 1C x 2.5 sq.mm to 25 sq.mm.

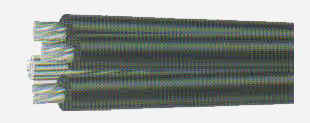

LT Aerial Bunched Cables (ABC)
XLPE / Black HDPE insulated Aluminium conductors are laid together (twisted) around Aluminum Alloy / ACSR conductor insulated or bare messenger wire to form the Aerial Bunched Cable.
Building Wires
Energy efficient wires range 0.75sq.mm to 16 sq.mm with different Insulation properties.FR – Flame Retardant
FRLS - Flame Retardant Low Smoke
FRZH - Flame Retardant Zero Halogen
FRLF - Flame Retardant Lead Free
FRFS - Flame Retardant Fire Survival

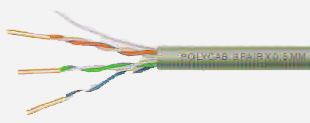

Telephone Cables
Range: 1 Pair to 100 Pair x 0.40 mm, 0.50 mm and 0.63 mm in solid bare conductor with HDPE Insulation and Flame Retardant Jacketing having lower cross talk and attenuation.
LAN Cables
Range: Cat 5e to Cat 6STP & UTP (Armoured & Unarmoured)

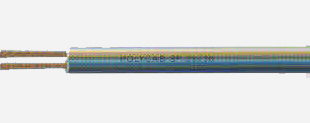

Speaker Cables
Range: Twin Parallel 23/26, 23/38, 40/36, and 40/38 – Polycab provides Speaker Cables with high quality oxygen free copper conductor.

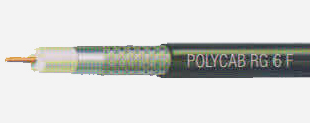

CO – Axial Cables
Range: RG 59, RG 6 F, RG 6 CSS, RG 11 F CSS.

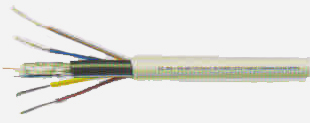

CCTV Cables
Polycab CCTV Cables are offered in two types namely 4+1 CCTV Cable and 3+1 CCTV Cables.
Single Core Industrial Flexibles
Energy Efficient Wires Range 0.50sq.mm to 1000 sq.mm in Class 5 copper conductors with different insulation properties.PVC
HRFR – Heat Resistant Flame Retardant
HR – Heat Resistant
HR - FRLS
